SH400 Digital Portable Hardness Tester

Mode/Code: SH-400/#852-140
Hardness Scale: HL, HB, HRC, HRA, HRB, HV, HS
Measuring Range: (170-960)HLD、(20-68)HRC、(19-651)HB、(80-967)HV、(30-100)HS、(59-85)HRA、(13-100)HRB
Dimensions : 155×55×25 mm

Features:

128*64 dot matrix high contras LCD for optimum viewing in all conditions;

Full USB communication with PC, software included free of charge;

Highly accurate (± 4HL) in any impact direction (360°) - automatically;

Internal storage of data with day and time capacity: 600 reading;

Available to preset limitation with alarm in case exceeded the ranges;

Real time shows battery information, auto power off in low battery situation;

With software calibration function;

Large capacity lithium battery.


Specification:

Product Name Digital Portable Hardness Tester
Model SH-400
Code# 852-140
Measuring Range (170-960)HLD、(20-68)HRC、(19-651)HB、(80-967)HV、(30-100)HS、(59-85)HRA、(13-100)HRB
Measuring Direction In any impact direction (360°)
Hardness Scale HL, HB, HRC, HRA, HRB, HV, HS
Applicable Materials Steel and Cast Steel, Metallurgical Steel, Forging Steel, Gray Cast Iron, Nodular Cast Iron, Cast Aluminum Alloy, Pure Copper, Copper Zinc Alloy (Brass), Copper Tin Alloy (Bronze)
Support Impact Device D / DC / D+15 / G / C / DL
Work piece radius (convex/concave) Rmin=50mm(with support ring Rmin=10mm)
Min. Workpiece weight 2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device
Workpiece min. thickness couple 3mm
Workpiece min. case hardened depth 0.8mm
Operating Temperature 0~40℃
Battery Life Continuously work 40hours
Dimensions 155×55×25 mm
Weight 180 g


Standard Delivery:

Product Name Quantity Product Name Quantity Product Name Quantity
Main Unit 1 Test block HLD 1 Cleaning Brush 1
USB Connecting Cable 1 Battery AAA 1.5V 2 Certificate 1


Optional Accessory:

No. Product Name NO. Product Name
1 Dataview Software 2 Support Rings

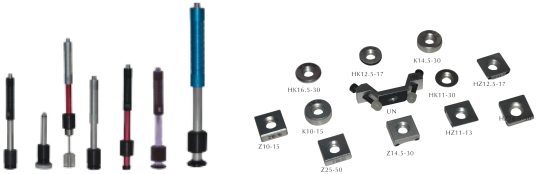

Various types of shock devices and heterotype support ring


No. Code Model Heterotype support ring diagram Remarks
1 03-03.7 Z10-15 For testing cylindrical outside surface R10~R15
2 03-03.8 Z14.5-30 For testing cylindrical outside surface R14.5~R30
3 03-03.9 Z25-50 For testing cylindrical outside surface R25~R50
4 03-03.10 HZ11-13 For testing cylindrical inside surface R11~R13
5 03-03.11 HZ12.5-17 For testing cylindrical inside surface R12.5~R17
6 03-03.12 HZ16.5-30 For testing cylindrical inside surface R16.5~R30
7 03-03.13 K10-15 For testing spherical outside surface SR10~SR15
8 03-03.14 K14.5-30 For testing spherical outside surface SR14.5~SR30
9 03-03.15 HK11-13 For testing spherical inside surface SR11~SR13
10 03-03.16 HK12.5-17 For testing spherical inside surface SR12.5~SR17
11 03-03.17 HK16.5-30 For testing spherical inside surface SR16.5~SR30
12 03-03.18 UN For testing cylindrical outside surface, radius adjustable R10~∞
